TRX4M Brass Portal Axles 216.4g Widen +10mm with Lay Down Servo Mount & Links for 1/18 RC Crawler TRX4-M Axle Upgrade Parts

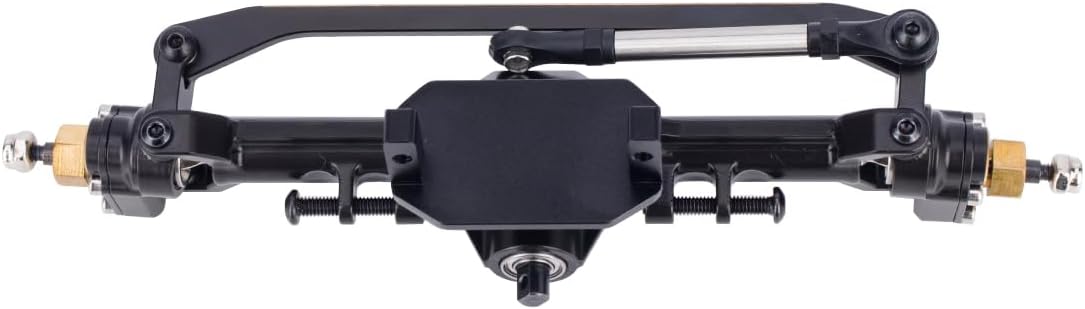

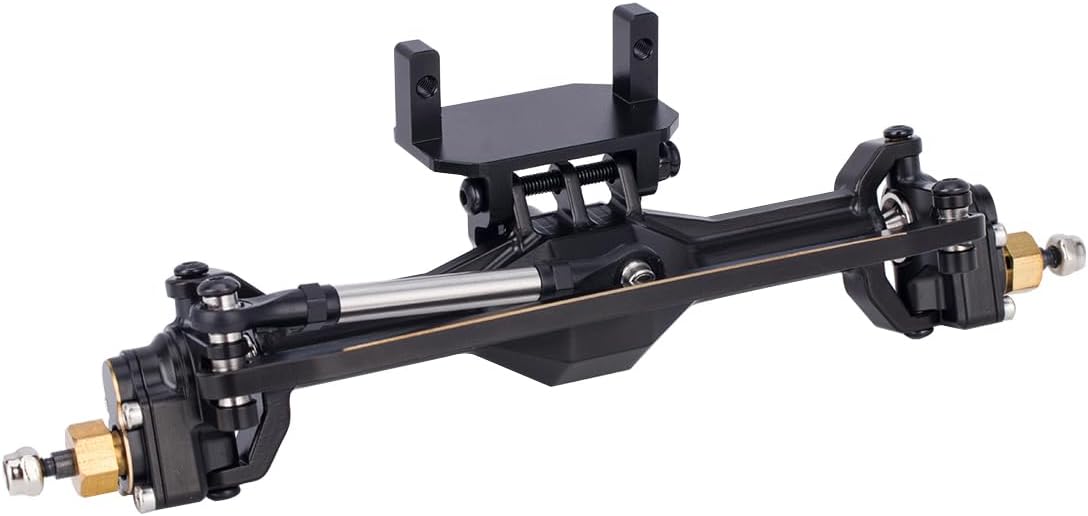

TRX4M Axles, Front & Rear Complete 216.4g +10mm Brass CNC Widen TRX4M Portal Axles with Lay-Down Servo Mount & Links for 1/18 RC Crawler Car TRX4M Upgrades Features: Brass CNC, Black coating Diamond Differential Cover, Full of texture Portal axles, providing sufficient ground clearance Equipped with 2 different servo mounts +10mm axles increase the width of each side by 10mm, increase total length by 20 mm The entire axles have been extended, not just the dogbone shafts, which prevents the dogbone shafts from being overburdened Come with Hardened CVD shafts, 12/24T axle gears, 12/22T portal gears, brass wheel hexes and nuts Specifications: Front and rear axles/sets Color: Black Material: Brass (Axle Housing,servo rod), Stainless steel (CVD shafts, servo rod),Carbon steel (output shaft/gear), brass (wheel Hex), plastic (ball head) Axle Gears: 24T/12T Underdrive Portal Gears: 12T/22T Axle gear ratio: 3.67:1 Output shaft: 3mm Steering angle: about 45° Connector specification: 7mm, thickness (4mm) Net weight: about 216.4g Total Length: 132.5mm What's Included: 1 set of the TRX4M Axles

• Suitable for TRX4M Upgrades: This TRX4M brass axle is compatible with 1/18 RC Crawler TRX4M upgrades parts but not with the standard TRX4M chassis due to a wider servo mount. It is also not compatible with original TRX4M dogbone shafts because the axle housings are 10mm longer on each side
• High-Quality TRX4M Axles: The TRX4M portal axles are made of brass with an anodized finish, ensuring a smooth surface and durability. The Diamond Differential Cover adds texture and style
• Performance Upgrade: Our TRX4M brass portal axles have been extended by 10mm on both sides compared to the stock TRX4M axles. Due to upgraded steel CVD and increased axle length, the axles now provide a maximum steering angle of 45°
• Design Details: The TRX4M axles come equipped with two different servo mounts and include hardened CVD shafts, 12/24T axle gears, 12/22T portal gears, brass wheel hexes and nuts. The axle gear ratio is 3.67:1

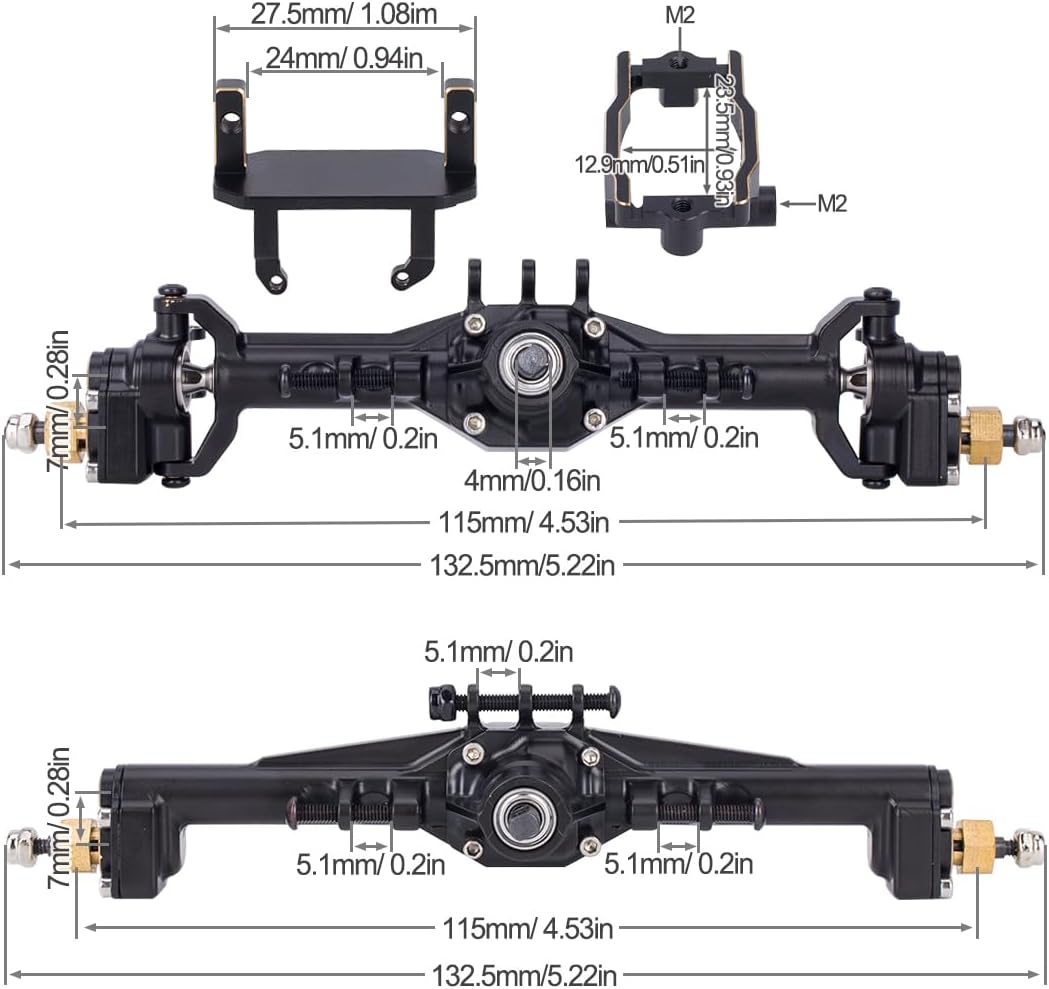

• Specifications of the TRX4M Axles: The TRX4M Axles have a net weight of approximately 216.4g / 7.63oz, a total length of 132.5mm, and a connector specification of 7mm with a thickness of 4mm
