LS171 Colorimeter with Color Meter App for Paint Coating ceremic Paper Plastic Textile Metal Color Difference

LS171 is a smart colorimeter which can provide color scan and color comparison for materials. The colorimeter complies with relevant international CIE standards. It adopts D/8 illumination geometry and is equipped with a high-precision sensor that meets CIE. The colorimeter has good consistency and repeatability and need to be used with mobile app for accurate color measurement and quality control. Using this affordable colorimeter will boost your color quality when color requirements are too stringent to depend on visual evaluation alone. It is more accurate and reliable than other basic colorimeters.As a portable colorimeter, LS171 is widely used in car paint spraying, plastics, metal, hardware, furniture industry, rubber and other fields. Illumination geometry:D/8, Specular Component Include (SCI) Illumination light source: Full spectrum LED light source Measuring aperture: 8mm Measurement conditions: Light source D65, field of view 10° Measuring time: about 1s Color spaces: CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex Color difference formulas: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 Repeatability: Standard deviation ΔE*ab ≤ 0.03 (Measurement condition: the average value of 30 measurements on the white tile at an interval of 3s after calibration) Power supplyRechargeable lithium battery 3.7V@700mAh,can continuously measure 10,000 times underfull charge Dimension: 57×57×89.4mm (L*W*H) Weight: about: 126g Display: 0.96 inch OLED Data transmission: Bluetooth Charging port: USB (Type-C) Operating temperature: 0~45℃, 0~85%RH (no condensation) Storing temperature: -25~55℃, 0~85%RH (no condensation)

• Seven color spaces and six color difference formulas The colorimeter has 7 color spaces and 6 color difference formulas provideing color measurement and color comparisons for different industries

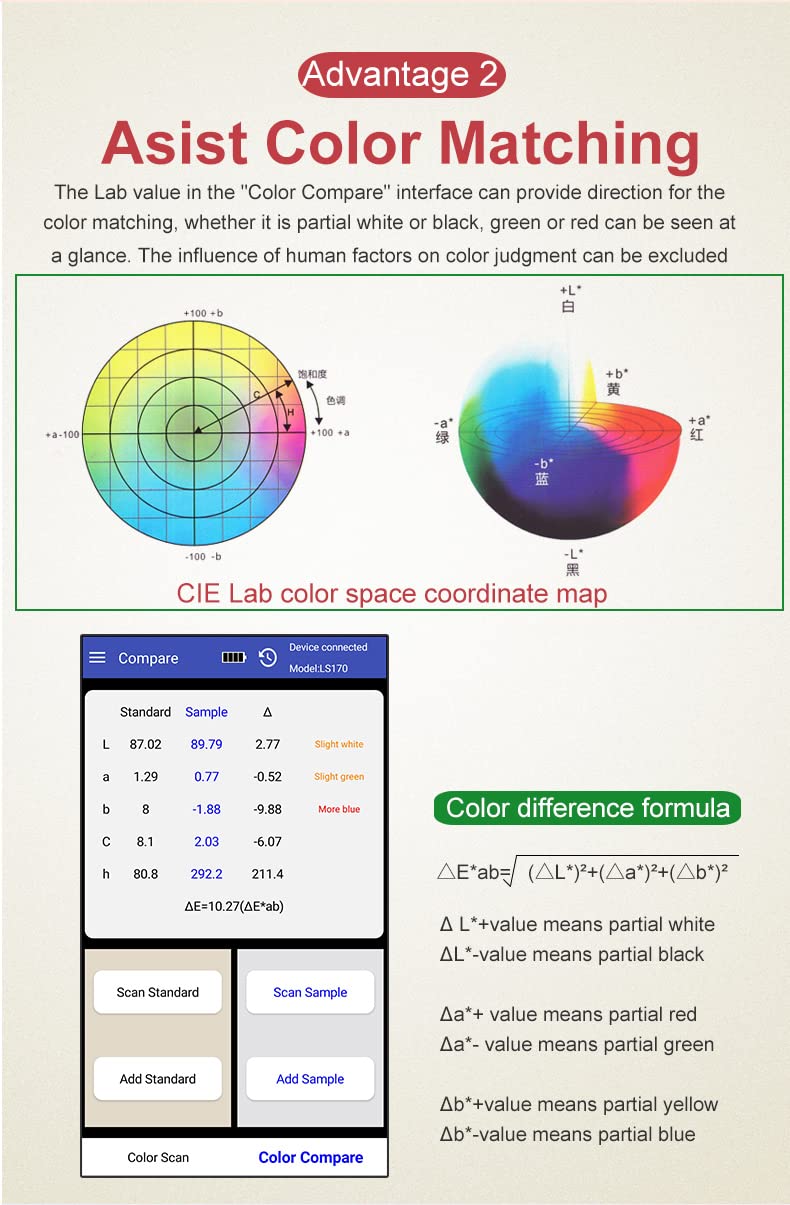

• Various ways to complete color comparison. We can enter the Lab or LCh values of the standard color in the color compare interface and complete color comparison. Standard color can also be added from the personal color chart and standard color chart
• Achieve Quality Control. Turning on the QC test function, batch detection can be conducted and the color difference threshold can be set to quickly achieve quality control
• Multiple color charts helps save money and time. There is no need to carry heavy color cards because the colorimeter has several color charts in it and It can match the color number corresponding to the standard color charts. The matching accuracy is greater than 90%
• Large storage enables convenient measurement. The device can save massive color datas in the app without worrying about running out of memory
