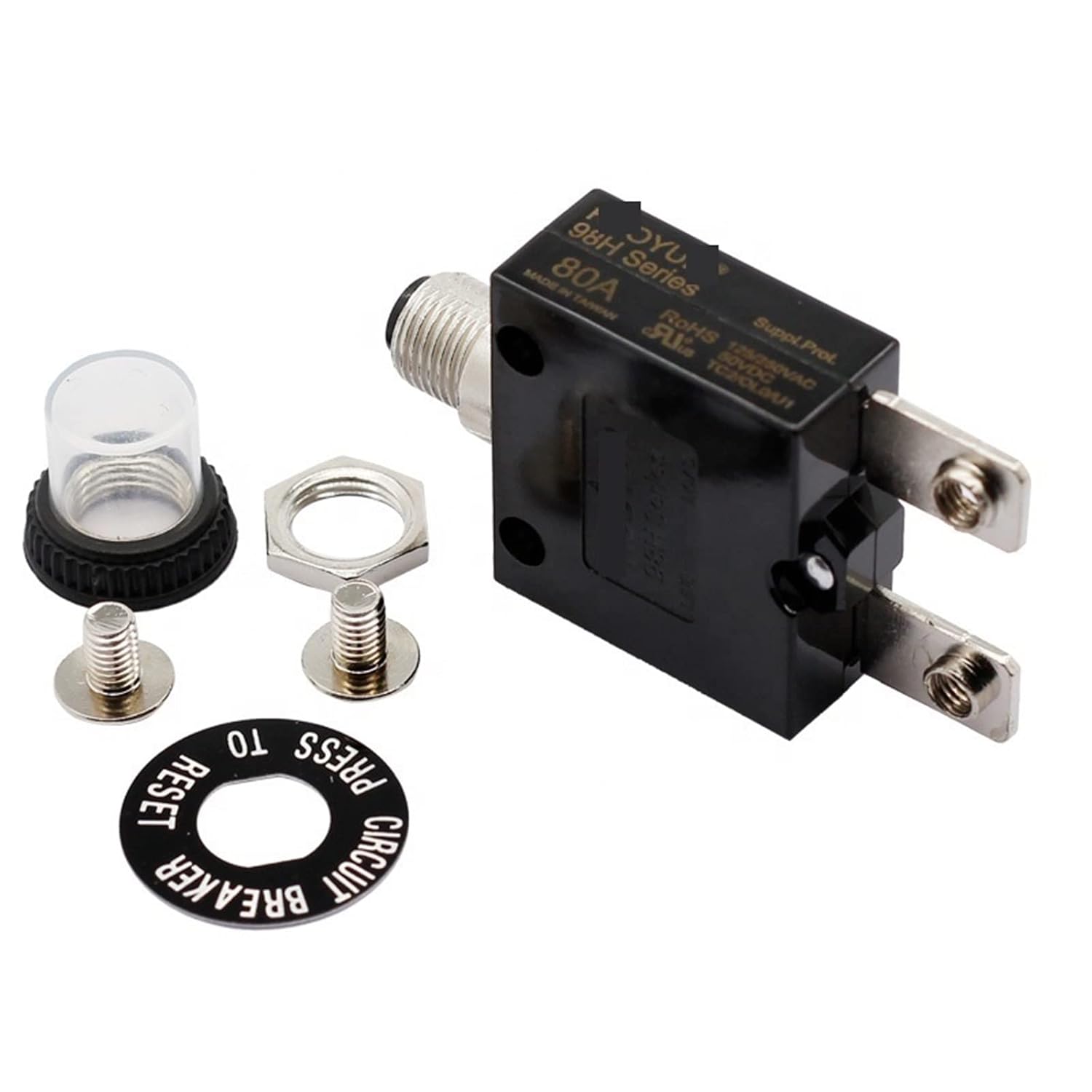

Electronic 98H Series 80A Auto Recloser Disyuntor Thermal Protector Circuit Breaker 1Pcs(50A)
Product details
| Management number | 210099276 | Release Date | 2026/04/02 | List Price | $12.80 | Model Number | 210099276 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Hydraulic-Magnetic Circuit Breakers98H series 80A auto recloser disyuntor circuit breaker thermal protector for pumpProduct DescriptionTechnical data.Current rating rang 40-80AInput voltage rating 125/250VAC: 50VDCInterrupting Capacity 125/250VAC X 1, 000A(UL 1077)Typical lite 500 operations at 200% overloadInsulation co-ordination Rated impulse withstand voltage 2. 5kv.Dielectric Strength 1. 500VAC/minInsulation Resistance >100MOHM(DC 500V)Degree of protection Terminal area IP00, operating area IP40Mechanical/Environmental DataOperating Ambient Temperature: -10C to +60 Cermination: Thickness 1. 5mm: 10/24 unc ScrewaNickle Mounting: Various options. See Ordering Information and drawingsCalibration(at25)100% of Rated Current: Hold, No Trip150% of Rated Current: Trip Within 1 Hour.200% of Rated Current: 5-38 sec Trip.300% of Rated Current: 3.0-7.5 sec Trip.ApprovaApproval File No Rated curre Rated voltage.CUL UL E155159 40-80A 125250VAC;50VDC
- Hydraulic-Magnetic Circuit Breakers
| Model | SIILTVOD |
|---|---|
| Brand Name | SIILTVOD |
| Unit Count | 1.0 Count |
| Item Weight | 50 Grams |
| Part Number | SIILTVOD |
| Manufacturer | SIILTVOD |
